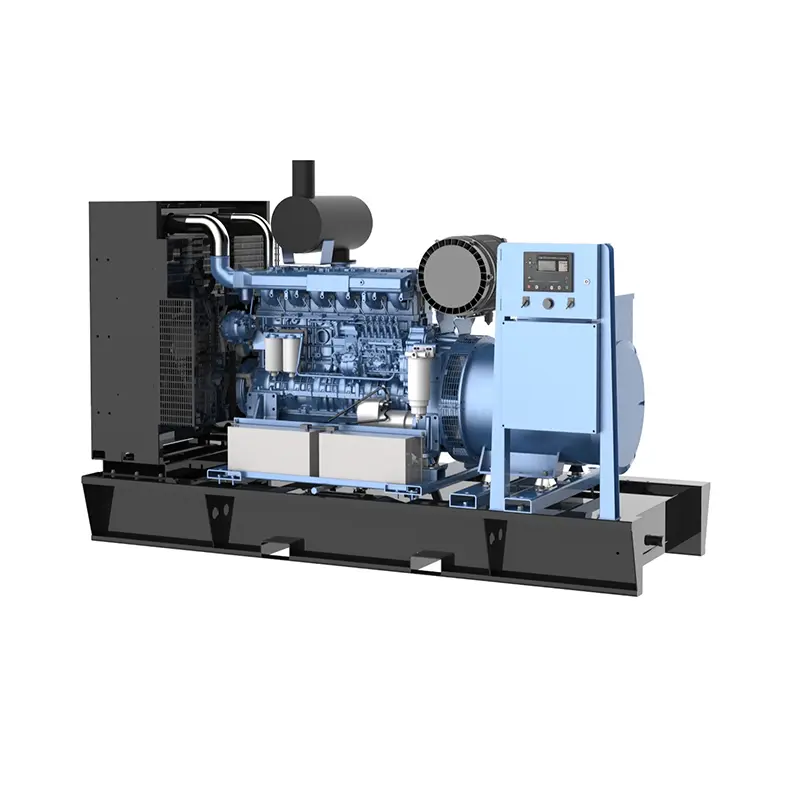

Weichai Industrial Generator Set High Efficiency Prp160kw/200kVA 400V WPG220F8

The WPG220F8 Generator is engineered to deliver robust and dependable power solutions, boasting a standby rating of 220 kVA and a prime rating of 200 kVA. Designed for versatility, this generator operates at a voltage of 400/230V and a frequency of 50Hz, making it an ideal choice for both residential and commercial applications. With a power factor of 0.8 and a three-phase system, the WPG220F8 ensures efficient energy distribution, providing peace of mind during power outages or high-demand situations.

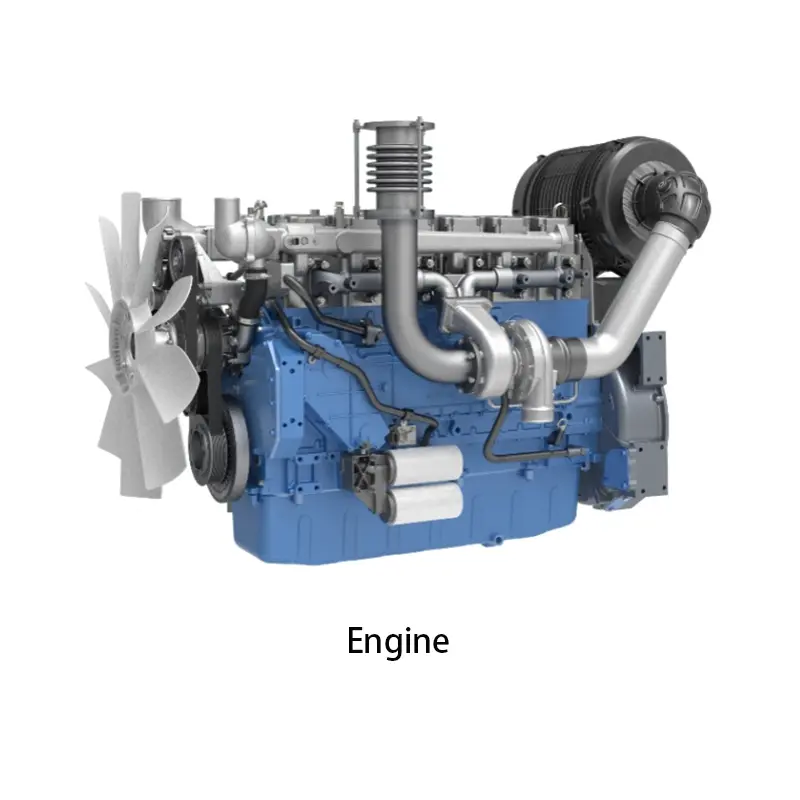

Engine Performance and Durability

The heart of our generator sets is their rugged engines, featuring cast iron gantry cylinders and a one-piece forged crankshaft for strength and long life. Individually cast iron cylinder heads and wet piston rings ensure optimal performance in all conditions. In addition, aluminum alloy pistons feature oil cooling channels for improved thermal efficiency and reduced wear. The combination of high-quality materials and innovative engineering ensures a reliable power source that can withstand the rigors of continuous operation.

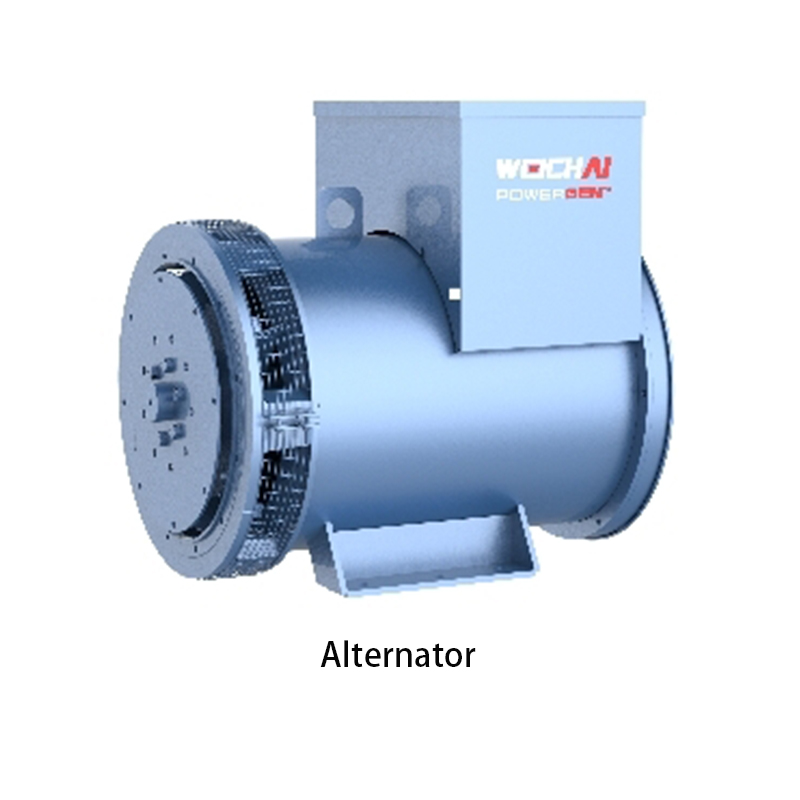

Advanced Alternator Technology

The generator is equipped with a brushless, 4-pole dynamo featuring an IP23 drip-proof rotating field design. With H-class insulation and a low reactance design, the dynamo ensures high efficiency and minimal energy loss. The continuous overcurrent capability of up to 300% for 10 seconds allows for handling sudden power surges, while the direct drive centrifugal blower cooling system maintains optimal operating temperatures, ensuring consistent performance.

Intuitive Module Controller

The WPG220F8 is equipped with the Deepsea DSE6120 MKI control module, which provides comprehensive monitoring and control capabilities. The LCD backlit display allows users to easily track generator and mains 3-phase voltage, speed, frequency, current, oil pressure, water temperature, and fuel level. The system also alerts users to any shutdown reasons and alarms, ensuring proactive maintenance and operational efficiency. With accurate engine running hours displayed, users can effectively monitor and schedule maintenance, prolonging the life of the generator.
