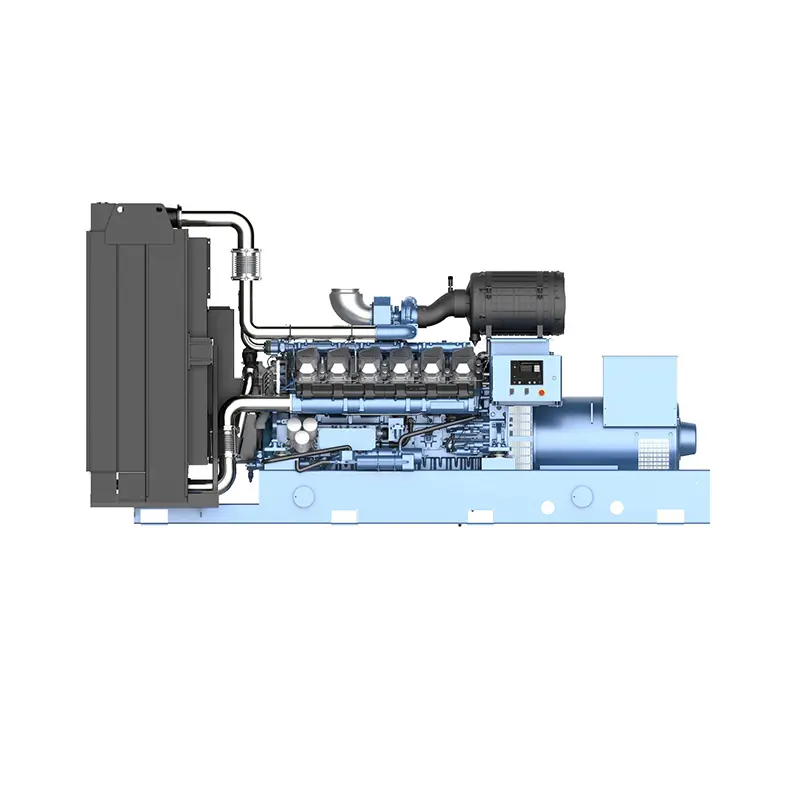

Weichai Generator for Mining & Construction Open Frame Large Generator Set WPG700F7

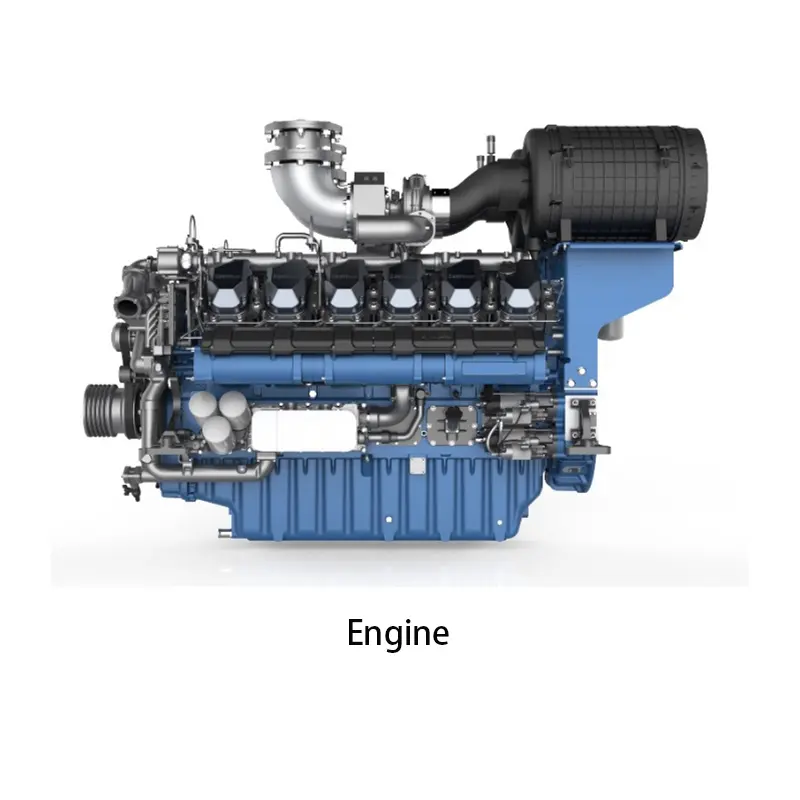

Maximize Engine Efficiency
The core of the Weichai generator is a robust engine crafted with a cast iron body-on-frame design, guaranteeing durability and long-lasting performance. It features a one-piece forged crankshaft and segmented forged steel connecting rods for exceptional strength. The engine is equipped with a separately cast cylinder head with four valves, which improves overall performance. Additionally, the engine includes a replaceable dry cylinder liner and aluminum alloy pistons with oil cooling channels, enhancing efficiency and ensuring reliable operation over extended periods.

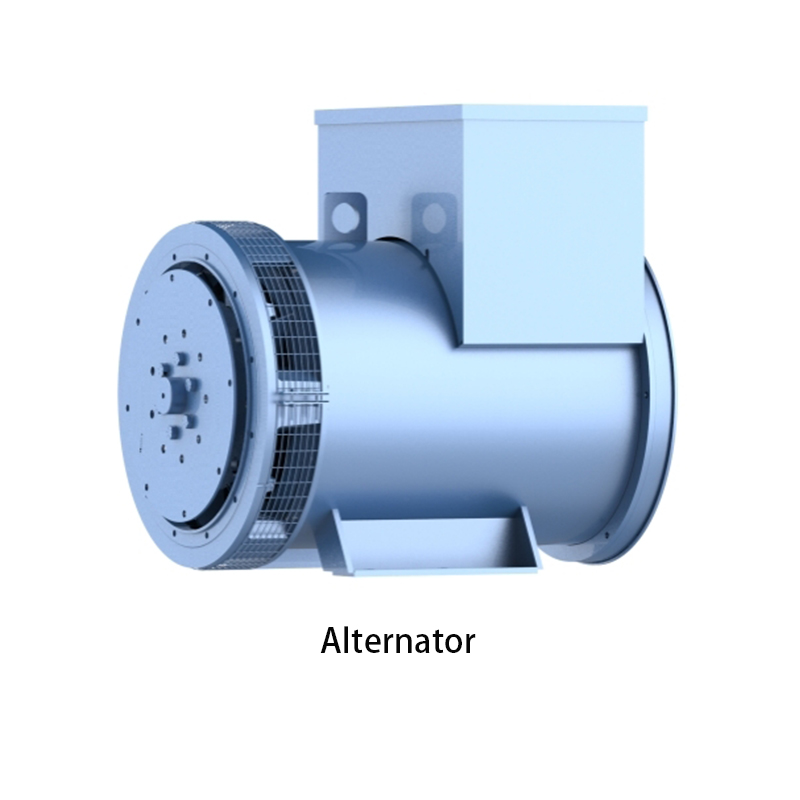

Next-Generation Alternator Systems
The generator features a brushless, 4-pole alternator optimized for superior performance. Equipped with H-class insulation and a low reactance design, it minimizes energy loss and delivers maximum power output. The direct coupling through a flexible disc enables smooth operation, while its capability to endure continuous overcurrent exceeding 300% for up to 10 seconds provides resilience against unexpected power spikes. Furthermore, the direct drive centrifugal blower cooling system helps maintain ideal operating temperatures, boosting the generator’s overall reliability.

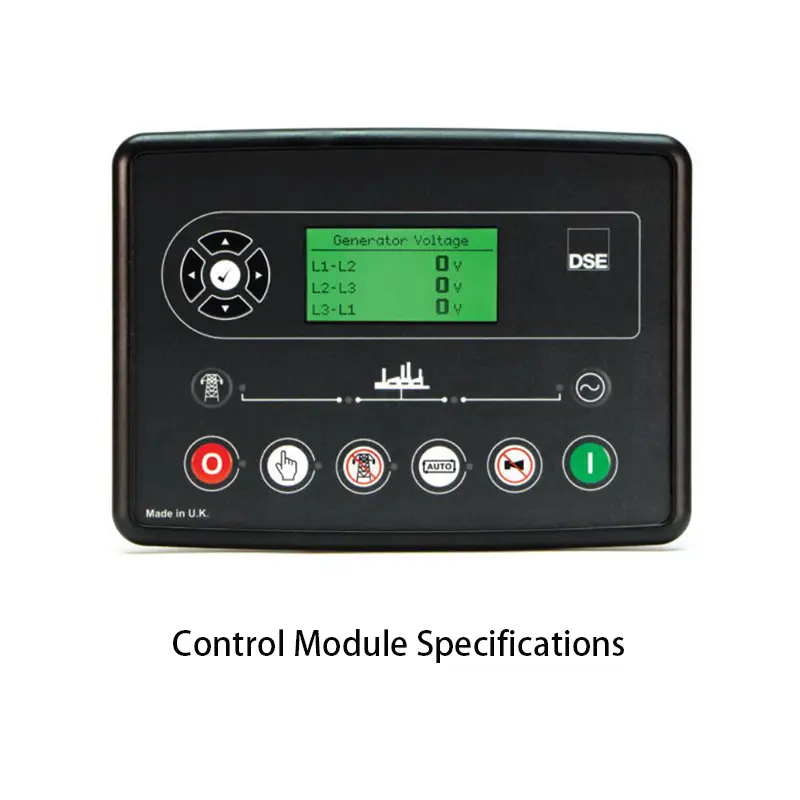

Easy-to-Operate Control Interface
The DSE control module integrated into the Weichai generator offers advanced management, monitoring, and diagnostics capabilities. With a backlit LCD display, users can easily monitor critical parameters such as speed, frequency, voltage, current, oil pressure, coolant temperature, and fuel level. The system provides real-time status messages and automatic shutdown protection in case of faults, ensuring safe and efficient operation. The hour counter feature allows for precise maintenance scheduling, further enhancing the generator's reliability and performance.
